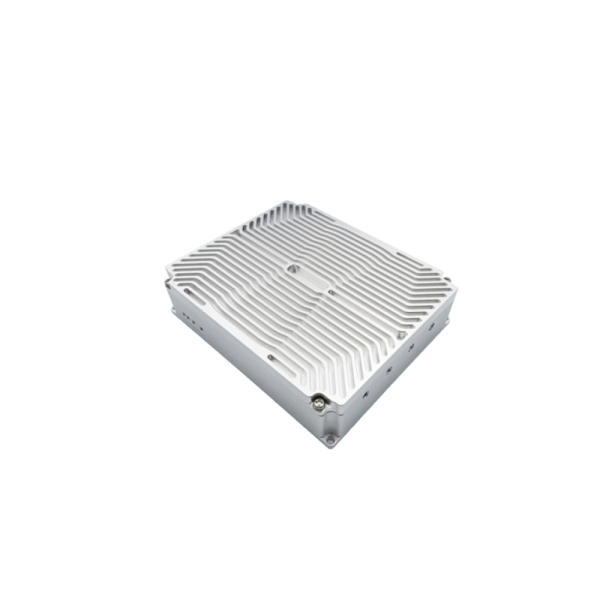

MX6012-ISv2 WIFI6 AP/无线路由器/网关/2T2R 802.11ax无线接入点
MX6012-ISv2 WIFI6 AP/无线路由器/网关/2T2R 802.11ax无线接入点
产品类别： WiFi主板系列
MX6012-ISv2是一款完整的802.11 a/b/g/n/ac/ax Wi-Fi 6解决方案，专为低功耗、高集成度的工业应用优化设计。该产品基于高性能单芯片IPQ6000平台，集成四核ARM Cortex-A53 1.2GHz处理器，并搭载双频2x2 MIMO无线模块，支持802.11ax标准，在80MHz频宽下最高速率可达1733Mbps。 其核心优势在于专业的本安设计，满足爆炸性危险环境的防爆安全要求，同时采用紧凑型结构，体积小巧，低功耗(DC 12V @1.2A)便于在空间受限的工业设备、矿用装置及嵌入式系统中灵活集成。产品具备宽温工作特性与低功耗表现，可广泛应用于智慧矿山、石油化工、工业物联网等对安全性、可靠性及空间布局有严苛要求的场景，提供高性能、高安全的无线连接能力
联系码讯 申请样机
产品概述
MX6012-ISv2是一款完整的802.11 a/b/g/n/ac/ax Wi-Fi 6解决方案，专为低功耗、高集成度的工业应用优化设计。该产品基于高性能单芯片IPQ6000平台，集成四核ARM Cortex-A53 1.2GHz处理器，并搭载双频2x2 MIMO无线模块，支持802.11ax标准，在80MHz频宽下最高速率可达1733Mbps。
产品特征
- 高通Atheros IPQ6000四核ARM 64位A53 1.2GHz处理器
- 2x2 2.4GHz，物理数据速率高达573Mbps
- 2x2 5.8GHz，物理数据速率高达1201Mbps
- 支持动态频率选择（DFS）
- DDR3内存高达3 GB
- 最高256MB（32MB）的SPI或闪存
- 高达256MB的NAND闪存
- 支持Uart/GPIO/LED
- WAN接口：1*1000Mbps GH1.25mm
- LAN接口：1*100/1000MbpsGH1.25mm
- DC供电：DC12V/1.2AGH1.25mm 4P带锁扣）
产品规格
| 主芯片 | IPQ6000+QCA8075+QCN5052+QCN5022 |
| 外置FEM | QPF4588A+QPF4288A |
| 内存 | 512GB DDR3+ 16MB Nor Flash+ 128MB Nand Flash |
| 频率范围 | 2.4G：2412MHz~2472MHz；5.8G：5180MHz~5320MHz、5745MHz～5825MHz |
| 无线速率 | 1773.5Mbps |
| 数据调制方式 | 11n：64-QAM MCS7 |
| 11ac：256-QAM MCS9 | |
| 11ax：1024-QAM MCS11 | |
| 发射功率 | 2.4G（11ax）： HT40：24dBm@ MCS0 |
| 5.8G（11ax）：HT80：24dBm@ MCS0 | |
| 接收灵敏度 | 11ax： |
| HE20 MCS0 <-95dBm / MCS11 <-62dBm | |
| HE40 MCS0 <-89dBm / MCS11 <-60dBm | |
| HE80 MCS0 <-86dBm / MCS11 <-56dBm | |
| 网口 | 1x1Gbps 电口*2 |
| 供电电压 | DC12V |
| 整机功耗 | WiFi功耗≤14W，扩展5G互联网功耗≤18W |
| 天线接口 | 4xMMCX |
| UART | Uart 接口 |
| RS-485 | RS-485 接口 3pin |
| 指示灯 | 状态指示灯 |
| 按键 | Reset键 |
| 尺寸 | 95（长） x 78（宽）x 23（高）mm, 偏差±0.5mm |
| 颜色 | 银色 |
| 工作/存储温度 | 温度：-20℃～+70℃（工作），-40℃ ～+90℃（储存） |
| 工作/存储温度 | 湿度（非凝结）：10％～95％（工作），5％～90％（储存） |
| 认证标准 | RoHS/REACH |
射频参数（2GHz）
|
速率 |
发射功率 （单通道） |
发射功率 （双通道） |
公差 |
接收灵敏度 |
公差 |
|
|
2GHz 802.11b |
1Mbps |
20dBm |
23dBm |
±2dB |
-101dBm |
±2dB |
|
2Mbps |
20dBm |
23dBm |
±2dB |
-99dBm |
±2dB |
|
|
5.5Mbps |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
|
11Mbps |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
|
2GHz 802.11g |
6Mbps |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
9Mbps |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
|
12Mbps |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
18Mbps |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
24Mbps |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
36Mbps |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
48Mbps |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
54Mbps |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
2GHz 802.11n HT20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-96dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-80dBm |
±2dB |
|
|
2GHz 802.11n HT40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-77dBm |
±2dB |
|
速率 |
发射功率 （单通道） |
发射功率 （双通道） |
公差 |
接收灵敏度 |
公差 |
|
|
2GHz 802.11ax HE20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-66dBm |
±2dB |
|
|
2GHz 802.11ax HE40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-93dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-66dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-64dBm |
±2dB |
射频参数（5GHz）
|
速率 |
发射功率 （单通道） |
发射功率 （双通道） |
公差 |
接收灵敏度 |
公差 |
|
|
5GHz 802.11a |
6Mbps |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
9Mbps |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
12Mbps |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
18Mbps |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
24Mbps |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
36Mbps |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
48Mbps |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
54Mbps |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
5GHz 802.11n/ac VHT20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-77dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-75dBm |
±2dB |
|
|
5GHz 802.11n/ac VHT40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-82dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-67dBm |
±2dB |
|
|
5GHz 802.11ac VHT80 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-67dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-64dBm |
±2dB |
|
速率 |
发射功率 （单通道） |
发射功率 （双通道） |
公差 |
接收灵敏度 |
公差 |
|
|
5GHz 802.11ax HET20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-77dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-74dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-71dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-68dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-65dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-62dBm |
±2dB |
|
|
5GHz 802.11ax HE40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-66dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-63dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-60dBm |
±2dB |
|
|
5GHz 802.11ax HE80 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-74dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-71dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-68dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-65dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-62dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-59dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-56dBm |
±2dB |

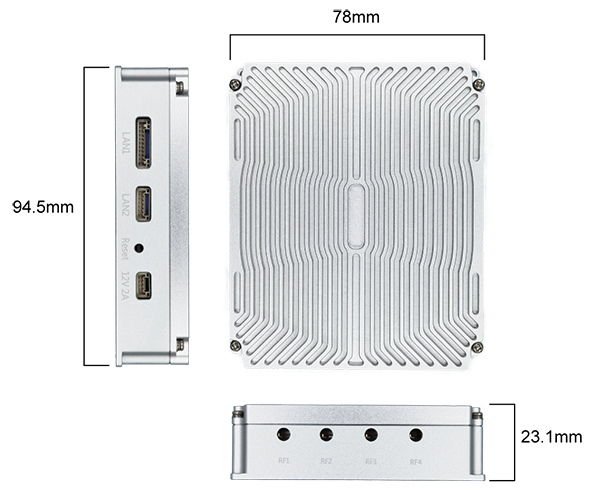

产品尺寸
