产品概述

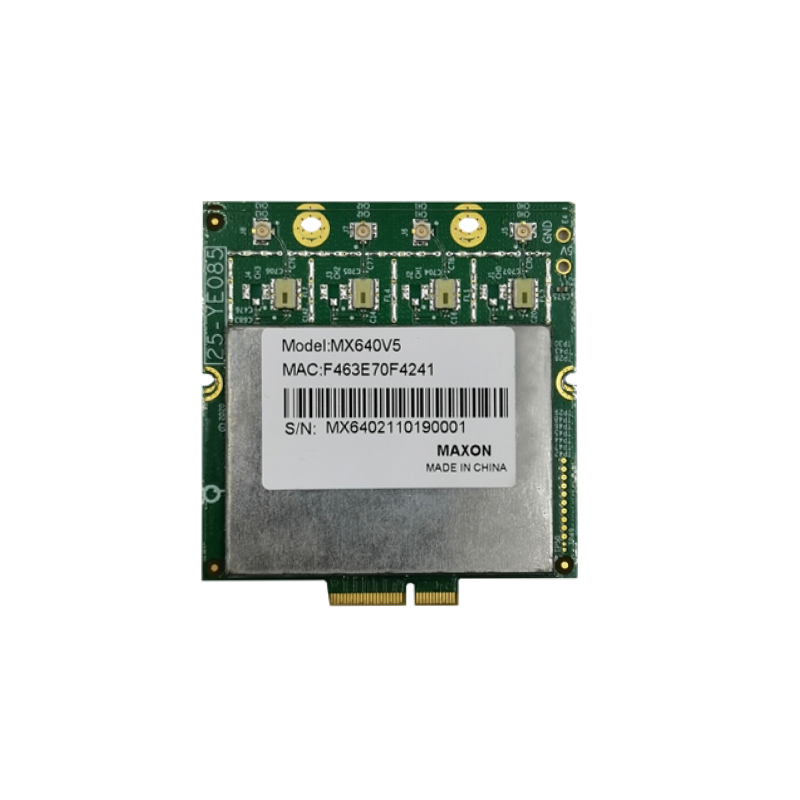

码讯MX-640V5 是一款配有 PCI Express 3.0 界面及 M.2 E-key 的嵌入式无线网卡。该无线网卡采用 Qualcomm® 802.11ax Wi-Fi 6技术，支持 5180-5850GHz 频段，可执行 AP 及 STA 功能，同时具备 4x4 MIMO 和 4 个空间流，适用于 5GHz IEEE802.11a/n/ac/ax应用，相比上一代无线网卡的传输效率更高，并具备动态频率选择(DFS)功能。
产品特征
-
配有PCI Express 3.0界面及M.2 E-key
-
采用Qualcomm® 802.11ax Wi-Fi 6技术
-
支持5180-5850GHz频段
-
可执行AP及STA功能
-
同时具备4x4 MIMO和4个空间流
-
适用于5GHz IEEE802.11a/n/ac/ax应用
-
相比上一代无线网卡的传输效率更高，并具备动态频率选择(DFS)功能
产品规格
|
硬件规格 |
IEEE 标准 |
IEEE 802.11ax |
|
界面 |
PCI Express 3.0，M.2 E-key |
|
|
工作电压 |
3.3V/5V |
|
|
工作频段 |
5G：5.180GHz~5.850GHz |
|
|
调变技术 |
802.11n： OFDM（BPSK，QPSK，16-QAM，64-QAM， 256-QAM） 802.11ac： OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ax： OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM，256-QAM，1024-QAM，4096-QAM） |
|
|
输出功率 |
802.11ax：Max. 23dBm (每条链路) |
|
|
电源功耗 |
≦15W |
|
|
接收灵敏度 |
11ax： HE20 MCS0 <-82dBm / MCS11 <-52dBm HE40 MCS0 <-79dBm / MCS11 <-49dBm HE80 MCS0 <-76dBm / MCS11 <-46dBm |
|
|
天线接口 |
4x U. FL |
|
|
重量 |
20 克 |
|
|
产品尺寸 |
60 (长) x 57 (宽) x 4.2 (高) mm (偏差±0.1mm) |
|
|
工作环境 |
温度：-20°C to 70°C 湿度：95% (无冷凝) |
|
|
存储环境 |
温度：-40°C to 90°C 湿度：90% (无冷凝) |
|
|
软件规格 |
认证 |
RoHS/REACH
|
射频参数
| 速率 | 发射功率（单通道） | 公差 | 接收灵敏度 | 公差 | |
| 802.11a | 6Mbps | 21dBm | ±2dB | -91dBm | ±2dB |
| 9Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 12Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 18Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 24Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 36Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 48Mbps | 17dBm | ±2dB | --- | ±2dB | |
| 54Mbps | 17dBm | ±2dB | -74dBm | ±2dB | |
| 802.11n/ac VHT20 | MCS0 | 21dBm | ±2dB | -91dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -67dBm | ±2dB | |
| 802.11n/ac VHT40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -71dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -65dBm | ±2dB | |
| 802.11ac VHT80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -61dBm | ±2dB | |
| 802.11ac VHT160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE20 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -64dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -60dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -58dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| MCS10 | 14dBm | ±2dB | --- | ±2dB | |
| MCS11 | 14dBm | ±2dB | --- | ±2dB | |
| MCS12 | 7dBm | ±2dB | --- | ±2dB | |
| MCS13 | 7dBm | ±2dB | --- | ±2dB |

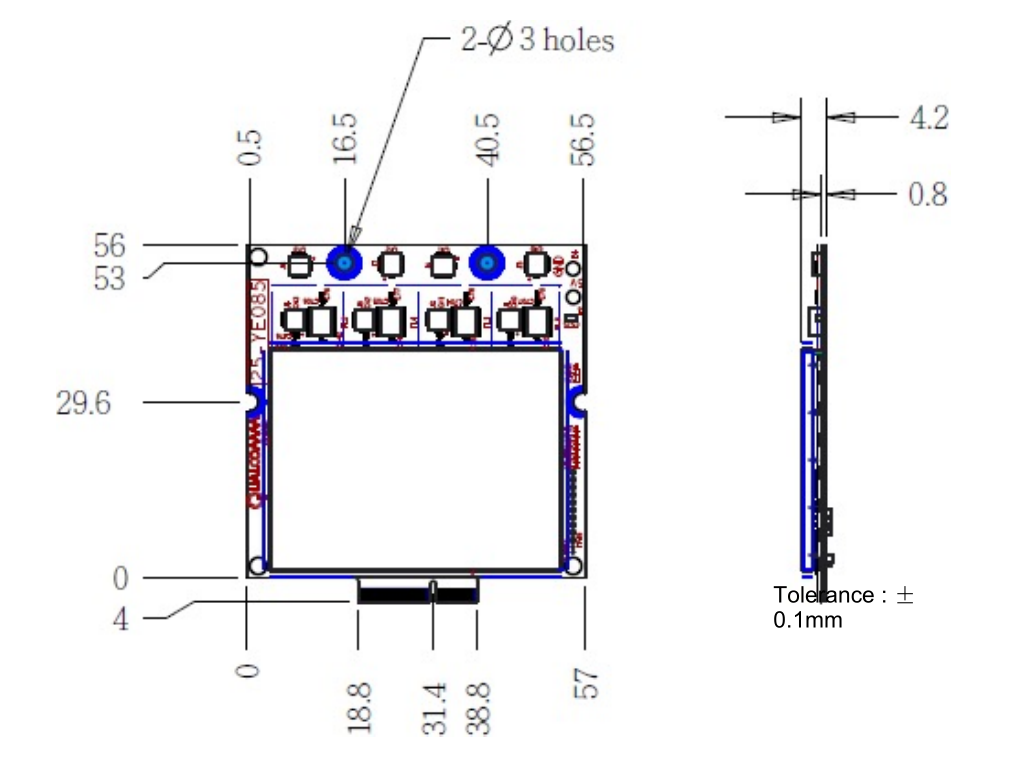

模组尺寸和推荐 PCB 方式
